How Plato Pod is built.

Small robots, one camera, and a server that builds a world around them. Everything a student or an umpire touches goes through one interface, and any piece can be replaced without the others noticing.

How the parts connect An overhead camera watches the arena, where a real pod and virtual units share one frame, and sends video to the server. Inside the server, vision, world and sensor processes exchange typed ROS 2 messages. Three processes face outward: the gateway serves the console and student code over a WebSocket, the ATAK bridge sends Cursor on Target to ATAK, and the pod bridge talks to each pod over Bluetooth LE. On the pod, a receiver feeds the motors, which drive the wheels; the camera sees the pod move, which closes the loop. Overhead camera A real pod (solid) and virtual units (dashed) share one frame SERVER · ROS 2 Vision World Sensors Gateway ATAK bridge Pod bridge THE POD Wheels Motors Receiver video WebSocket Cursor on Target Bluetooth LE Console and student code ATAK the camera sees it move How the parts connect An overhead camera watches the arena, where a real pod and virtual units share one frame, and sends video to the server. Inside the server, vision, world and sensor processes exchange typed ROS 2 messages. Three processes face outward: the gateway serves the console and student code over a WebSocket, the ATAK bridge sends Cursor on Target to ATAK, and the pod bridge talks to each pod over Bluetooth LE. On the pod, a receiver feeds the motors, which drive the wheels; the camera sees the pod move, which closes the loop. Overhead camera A real pod (solid) and virtual units (dashed) share one frame SERVER · ROS 2 Sensors World Vision Gateway ATAK bridge Pod bridge THE POD Wheels Motors Receiver video WebSocket Cursor on Target Bluetooth Console and student code ATAK Dashed: the camera sees it move
The camera and arena, the server, and what connects to it. Every box in the server is a separate process, and they speak typed ROS 2 messages. The three solid boxes are the server's only doors to the outside. Above the pod bridge, a real pod and a virtual unit look the same, and the dashed line is how a pod's movement comes back: through the camera.

The pods

Each pod is a round robot 85 mm across: a 3D-printed body split by two wheel slots, a custom circuit board with an ESP32-S3, two geared motors, and a small lithium battery charged over USB-C. A marker printed on the lid is how the camera finds it.

The pod does little thinking of its own, on purpose. It takes wheel commands over Bluetooth and stops if no command arrives for 600 ms. Where it actually goes is measured by the overhead camera, and the server steers on that. The intelligence lives on the server, where it can be read, changed and tested.

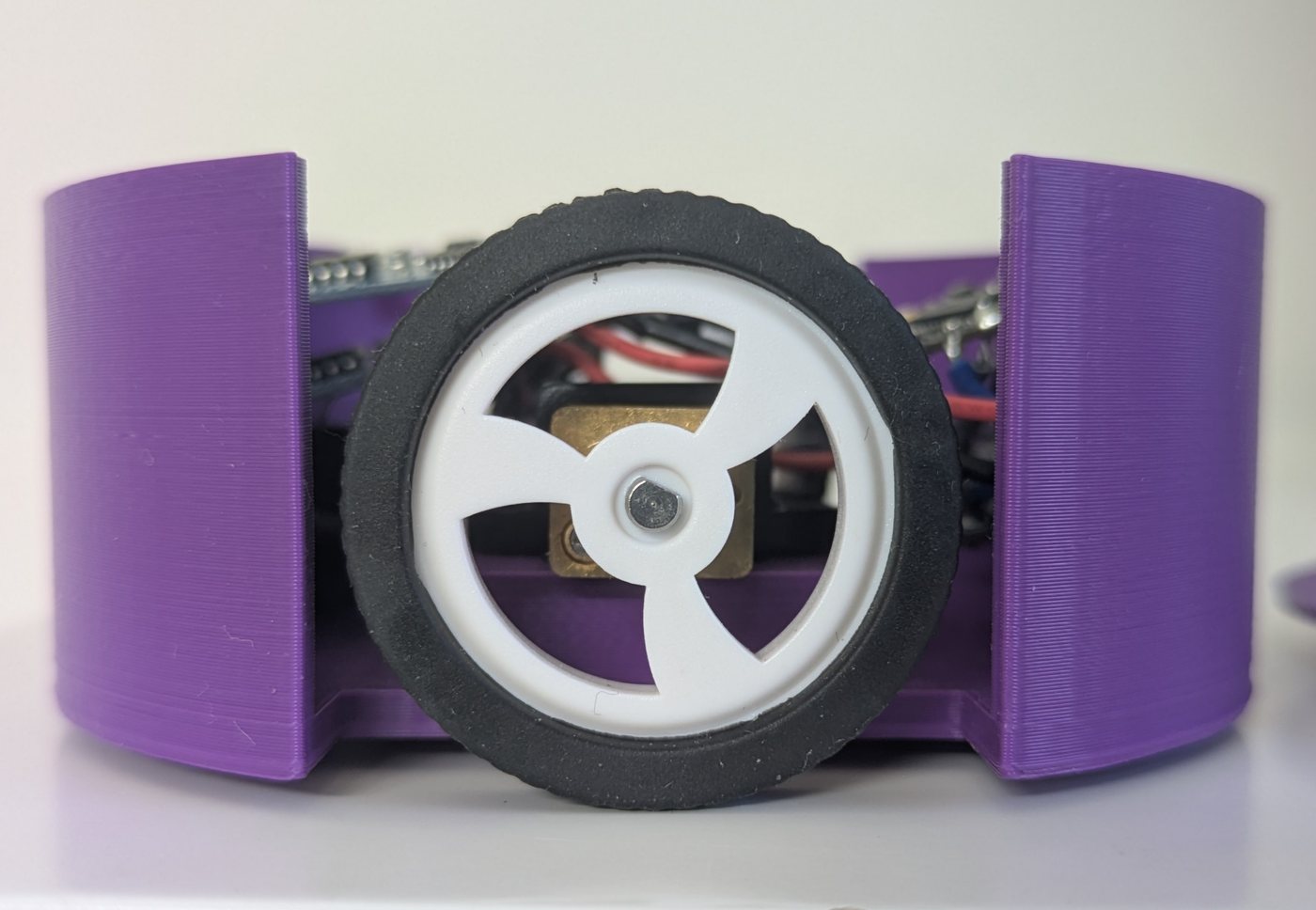

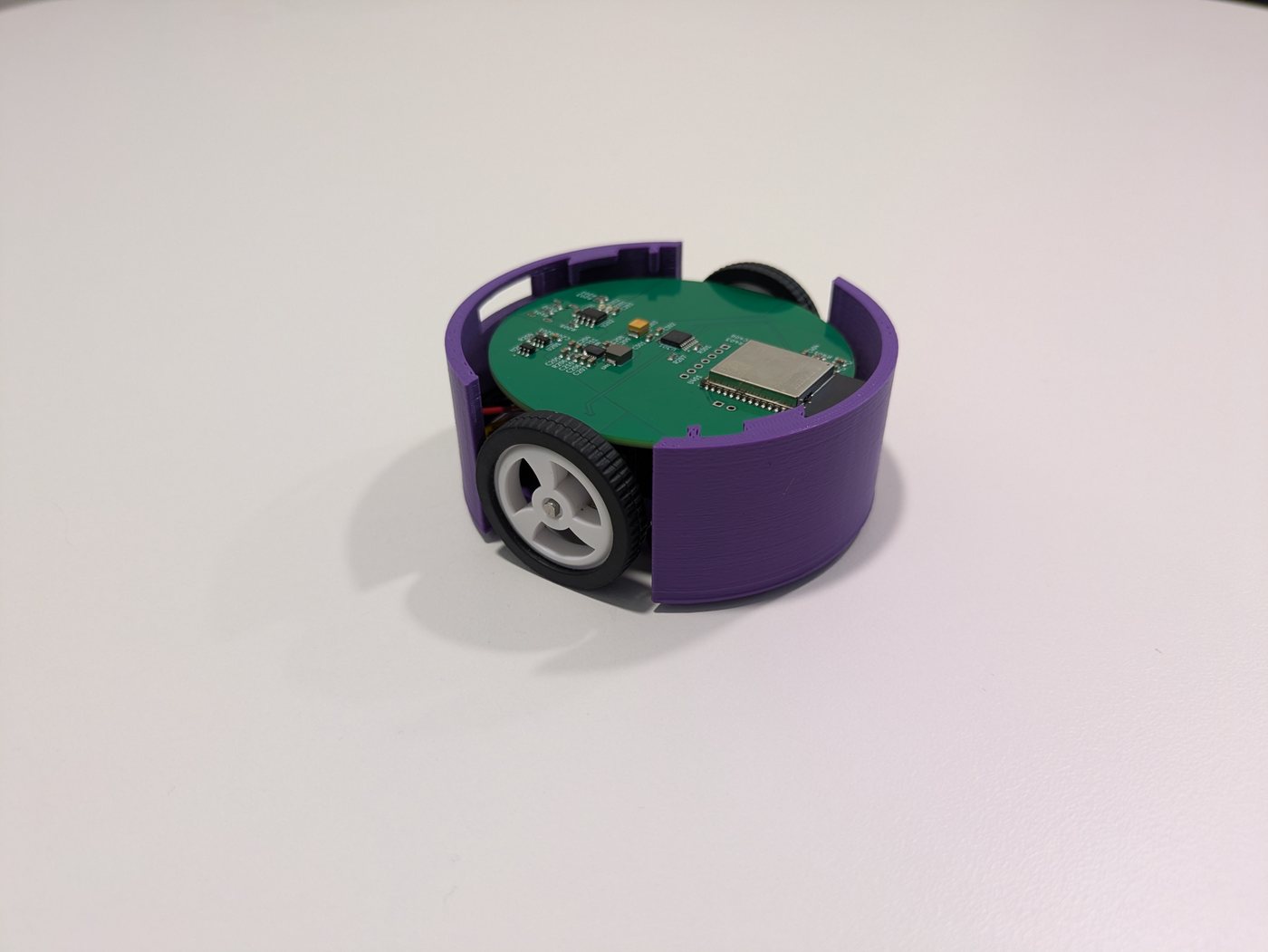

A pod with its lid off: the purple printed body, the green circuit board and a wheel. A pod from the side: a rubber wheel with a white three-spoke hub in the body's slot.
A pod opened up, and from the side.
Render of the pod's circuit board, top side, with the ESP32-S3 module. Render of the pod's circuit board, underside.
The pod's circuit board, top and underside.

Seeing the arena

One overhead camera reads the marker on every pod and turns it into a position and a heading in metres, many times a second. Four more markers sit on the corners. The arena is fitted from their geometry rather than from which marker is where, so they go down in any order, and the arena re-fits itself when one is moved.

From the same picture the console draws a top-down view at a constant scale, so what the camera sees at an angle can be read like a map.

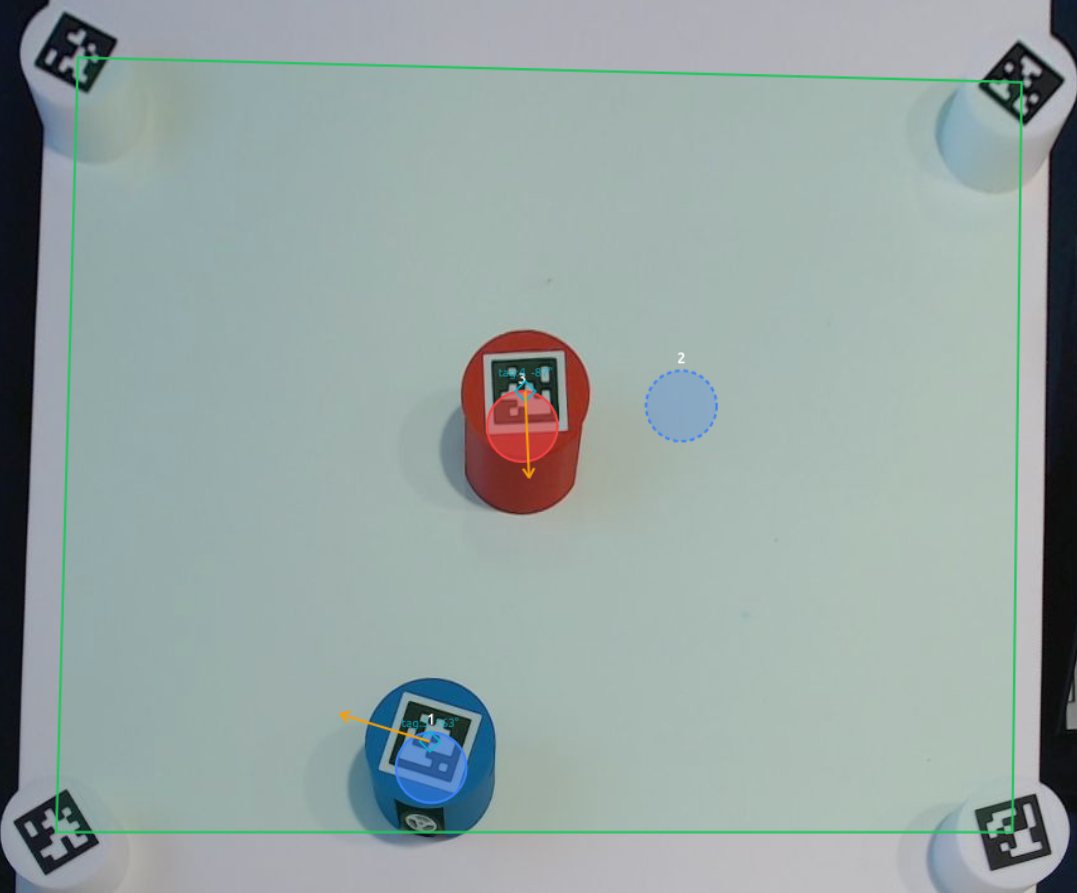

The camera's picture with the arena outline, a red pod, a blue pod and a dashed circle for a virtual unit drawn over it. The same arena rectified to a top-down view.
The console: the camera's view with the arena drawn over it, and the same scene rectified to a top-down view. The dashed circle is a virtual unit.

A world around the pods

Physical pods and virtual units read the same world, and scenario logic cannot tell them apart. The server simulates what the robots carry and what surrounds them.

  • SensorsEleven, simulated: gas with a real detector's lag, GNSS in metres or latitude and longitude, sonar, radar, lidar, thermal, rangefinder, IED detector, direction finding, UAV camera and friend-or-foe. Each pod's set, and each sensor's noise, can be changed while an exercise runs.
  • EngagementEvery shot resolved against weapon, line of sight, cover and the target's armour. Damage slows a unit and degrades its fire, however it is driven.
  • Rules and adversaryRules of engagement checked before a round resolves, and an opposing force that patrols, observes, engages and withdraws on its own.
  • UmpireGas releases, wind shifts and strikes injected mid-exercise, seen at once by sensors and maps.
  • SafetyWhatever drives it, a pod will not leave the arena, cross a declared obstacle or drive into another robot.

One interface, any language

Everything a client does — drive a pod, read a sensor, receive an engagement, inject an umpire event — travels over one WebSocket as JSON, so code in any language can use the arena. A small Python library wraps it for students. Inside the server, the parts exchange typed ROS 2 messages, so any of them can be rewritten in Python, C++, MATLAB, Rust or Java. The exercise also reaches ATAK over Cursor on Target.

How it is run

  • ServerROS 2 Jazzy and Python, in Docker on an ordinary x86 PC. A GPU is used when present and never required.
  • ConsoleA web page: nothing to install.
  • TestsOver two thousand unit tests, and a suite that launches the whole system and drives it the way clients do.
